Typical Drip Irrigation System Layout

Facebook
Facebook
LinkedIn
Pinterest
Google+
http://driptips.toro.com/drip-irrigation-layout/">
Instagram
YouTube
YouTube
SHARE

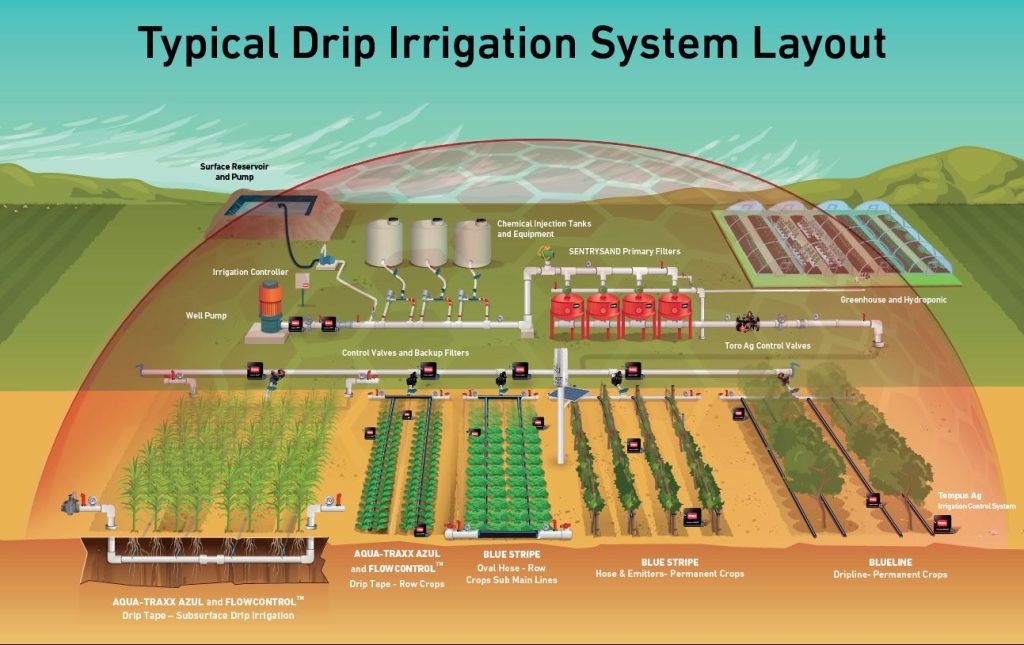

The “Typical Drip System Layout” illustration has been developed to help those who are unfamiliar with drip irrigation understand basic drip irrigation system components and concepts. The drip irrigation layout illustration is organized into two halves. First, the “headworks” portion of a drip irrigation system shows the typical water sources, pumps, filters, chemical injection equipment and controls used in a drip irrigation system. Second, the “field” portion of the drip irrigation system shows typical layouts for five different types of drip irrigation: field crop subsurface drip irrigation (SDI), short term vegetable crop, longer term vegetable crop, vineyard and orchard. Although every application and design will be different than this illustration, it provides a starting point for discussion with viewers unfamiliar with drip irrigation.

Click here to watch the animated drip system illustration to see the multiple steps of the drip irrigation process.

For more information about a typical drip irrigation system, click here for the “Typical Drip System Layout” brochure.  For the Spanish language brochure, click here.
